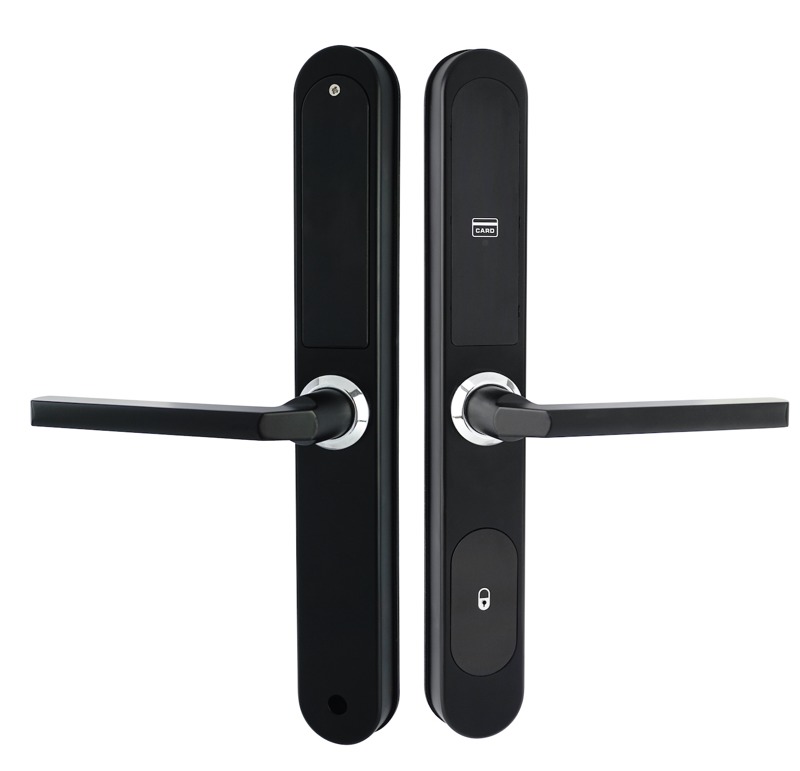

Slim lock with card reader for any door, including doors made of thin plastic or aluminum profile with 72/85/92 mm locking mechanism.

The lock can be installed as an handles on any locking system and has the ability to operate any locking system by moving the "handle up".

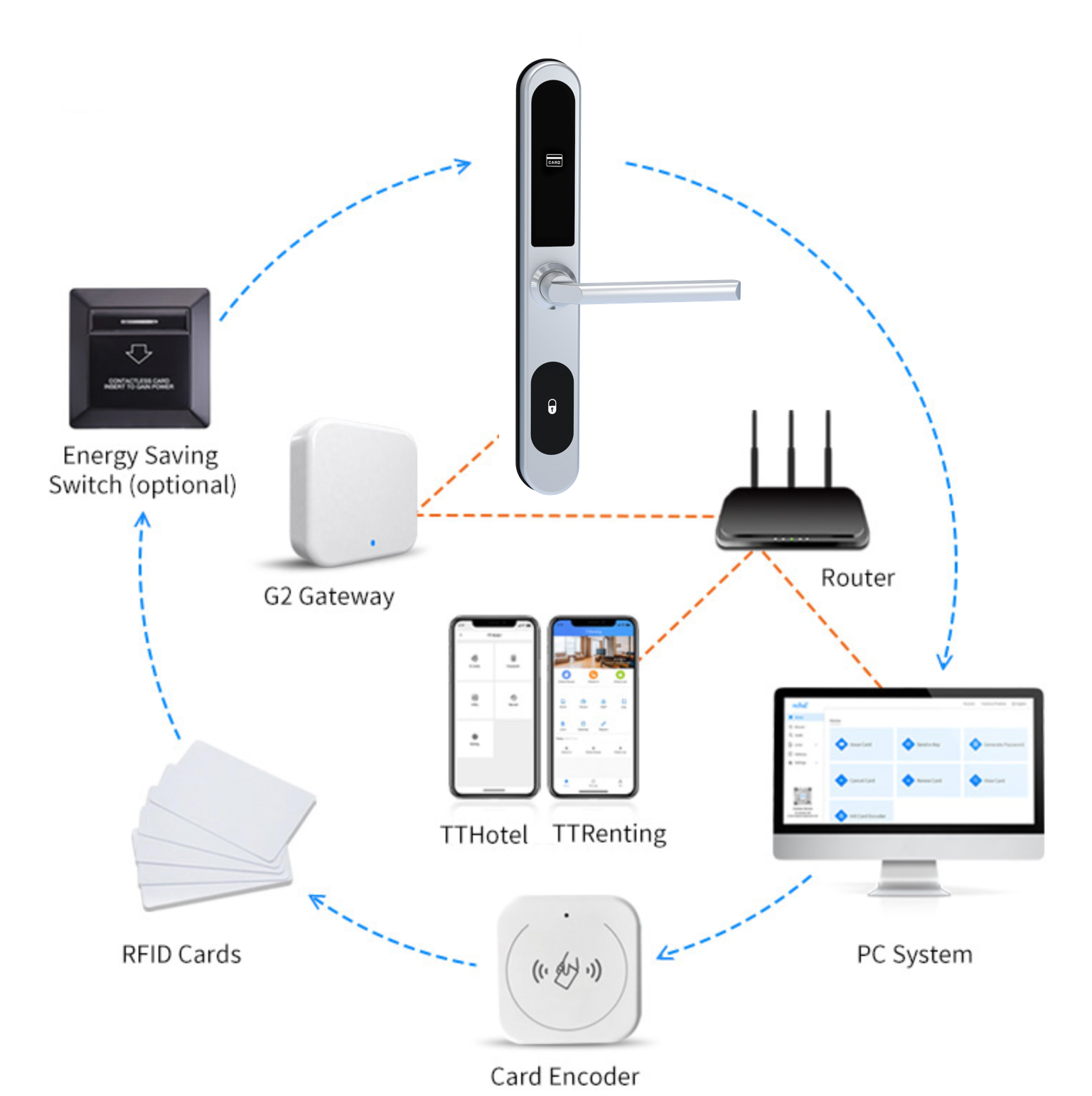

TTHOTEL SLIM lock designed to work only with TTHOTEL software using contactless access cards compliant with the MIFARE standard.

The lock body is made of aluminium and, thanks to its slim design, will fit any door.

The lock is ideal for doors with 85mm locking mechanism of any manufacturer and allows to realize all scenarios of locking and unlocking the door without using mechanical keys.
The lock can also be easily installed as handles on any locking mechanism with a latch or can be equipped with a reliable mortise locking part with a dead bolt suitable for your door.

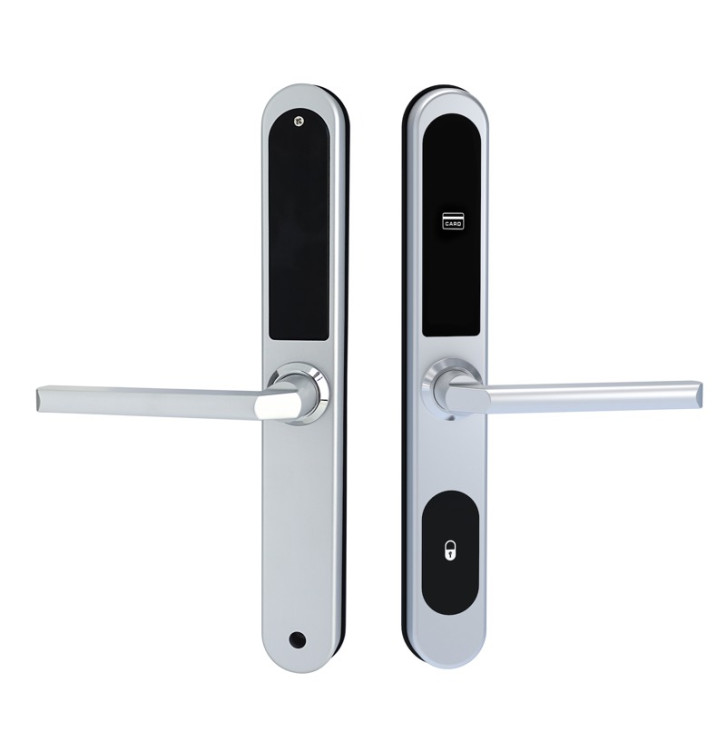

The lock body is made in hi-tech style in two colors - dark cobalt and light metallic. The body and all lock electronics have additional protective coating and seals, which allows the lock to be installed on outdoor doors. The lock fasteners are located on the inner part of the lock, which provides sufficient vandal resistance and protection against forceful burglary attempts.

Product Parameters
| TYPE | Smart slim handle |
| NAME | TTHOTEL SLIM LOCK |
| UNLOCK WAYS | MF Card, BLE APP ( ttlock or tthotel ), Mechanical Key |
| MATERIAL MADE | ALUMINIUM ALLOY |
| PROTECTION LEVEL | Indoor / outdoor ( installation is acceptable with additional protection against rain ) |
| USER CAPACITY | IC CARD ( MF 13.56Mhz )- software limits |
| DOOR THICKNESS | standart packing - 35mm ~85mm / up to 100 mm - optional |
| WORKING TEMP | -10℃~55℃ |
| POWER | 6V ( 4 x AAA Batteries) |
