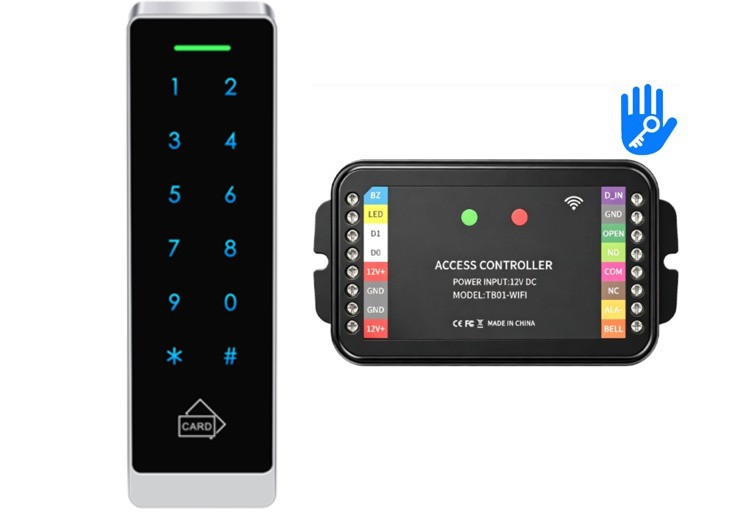

TTLOCK WIEGAND KIT2

The TB01-WIFI is an advanced, compact smart access control controller engineered for high-security applications across offices, apartments, and hotels. Supporting TTLock APP mobile remote management, WiFi, and Bluetooth connectivity, it allows users to perform remote unlocking, authorize administrators, query access records, and manage passcodes effortlessly. Built with durable ABS material, a wide operating voltage range (DC 12V-24V), and Wiegand 26/34 input compatibility, this controller offers comprehensive access control with flexible unlock modes including RFID card, password, and mobile app access.

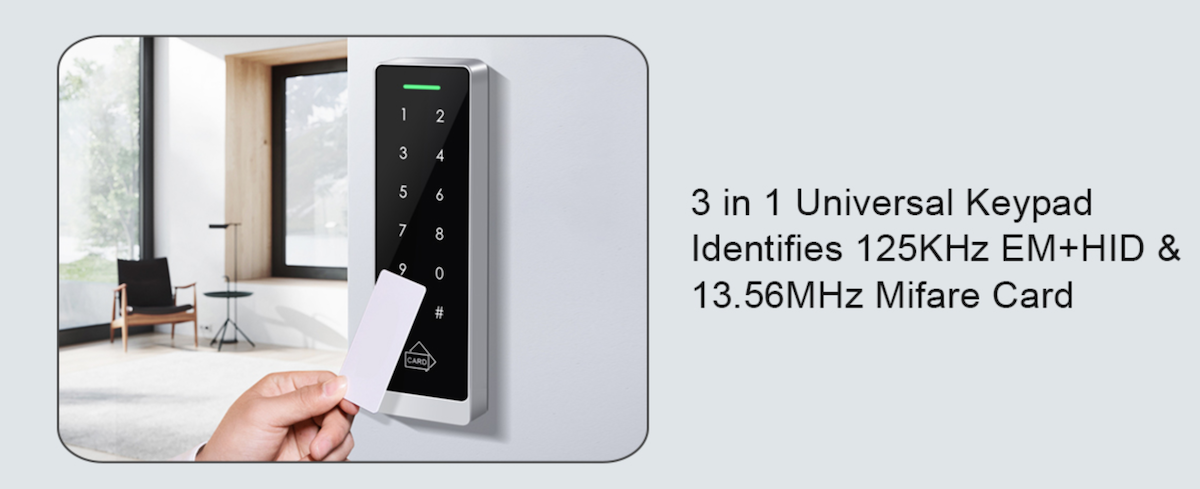

Multiple Unlock Methods: Supports RFID card ( 125 / 13.56MHz) , passcode, Remote Control, Bluetooth APP, and remote WiFi APPunlocking.

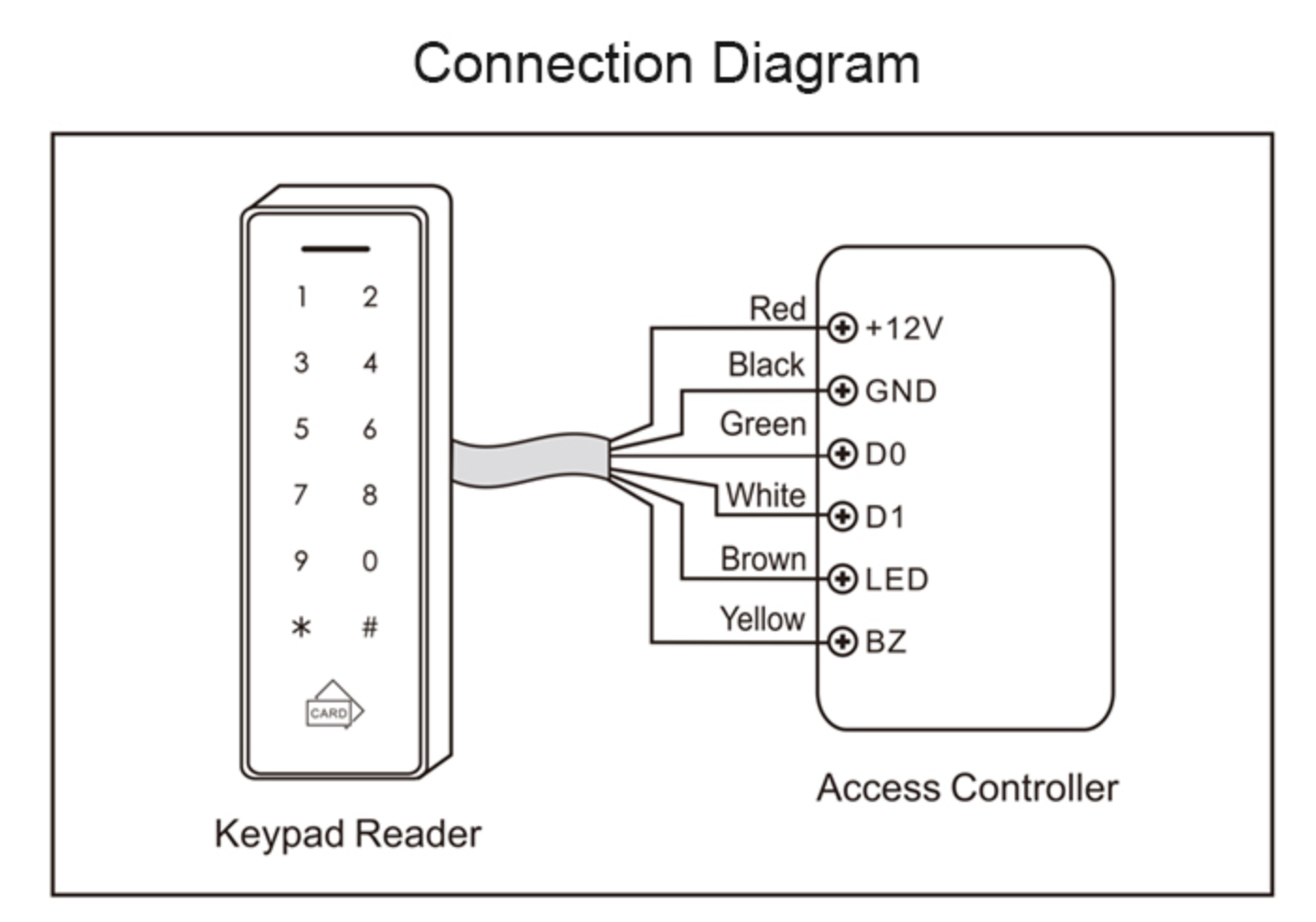

Wiegand 26/34 Input & Dual Door Interlock: Fully supports Wiegand 26/34 protocol input and dual-door interlock scenarios.
Flexible Power & Low Consumption: Works reliably on DC 12V–24V voltage with low standby current (≈45mA) and low working current (<200mA).
Compact & Versatile Wiring Interface: Designed with a compact 90×58×20mm ABS frame with terminal connections for exit button, alarm, door sensor, and relay output.

We recommend this controller for hotels, hostels, enterprises, offices, commercial premises ... wherever it is necessary to organise high secure controlled access control with the possibility of logging all events.

The controller need external 12-24V power supply and one relay output with NO/NC contacts with a switching current of 12V 2A.

The relay closure duration can be programmed via TTLOCK application on your smartphone within the range of 1-990 sec, also you can activate the "FREEWAY" mode by schedule or by command from the administrator's smartphone.

Product Parameters
